Product Detail
Model: BTWL-A3SO-144
5-inch 144W Square Flood LED Work Light
Producing 12,240 actual lumens from a 5-inch square housing, this 144W flood work light is designed for machine areas that need wide, powerful illumination. Intelligent thermal management helps control operating heat, while CISPR25 Class 4 compliance addresses electrical-noise requirements.
Key Features
144W Power
12,240 lm Output
Flood Beam
Thermal Management
IP68 Water Protection

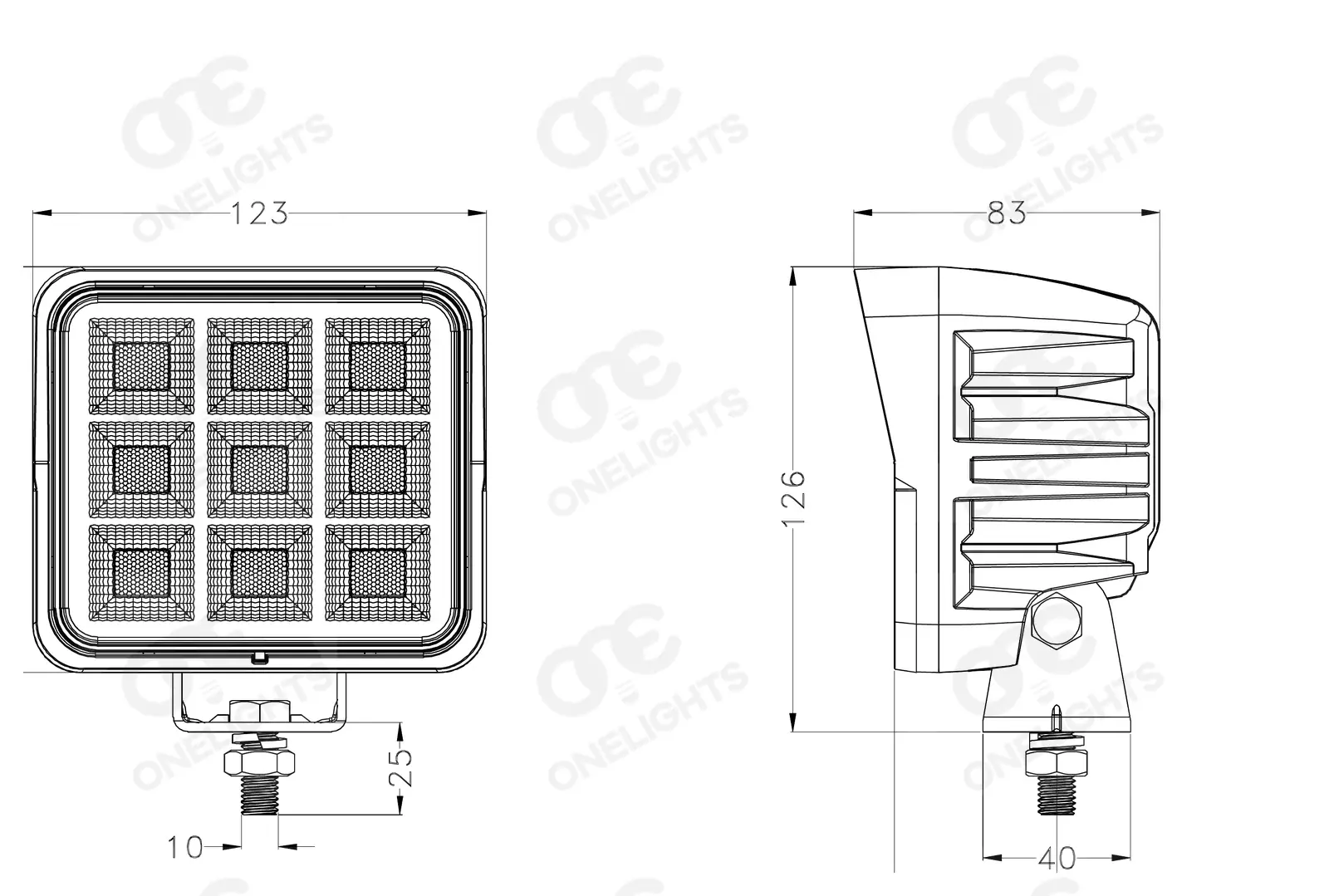

Size
5-inch
Power
144W
Operating Voltage
9-32V DC
Actual Lumens
12,240 lm
Beam Pattern
Flood Beam
Color Temperature
6000K
IP Rating
IP68
Housing Material
Die-cast aluminum
Lens Material
PC
Mounting / Bracket
304 Stainless Steel Bracket
Cable / Connector
Bare Wire Leads
Operating Temperature
-40°C to +85°C
Certifications & Compliance
CISPR 25 Class 4
