Product Detail
Model: BTWL-A3EO-160

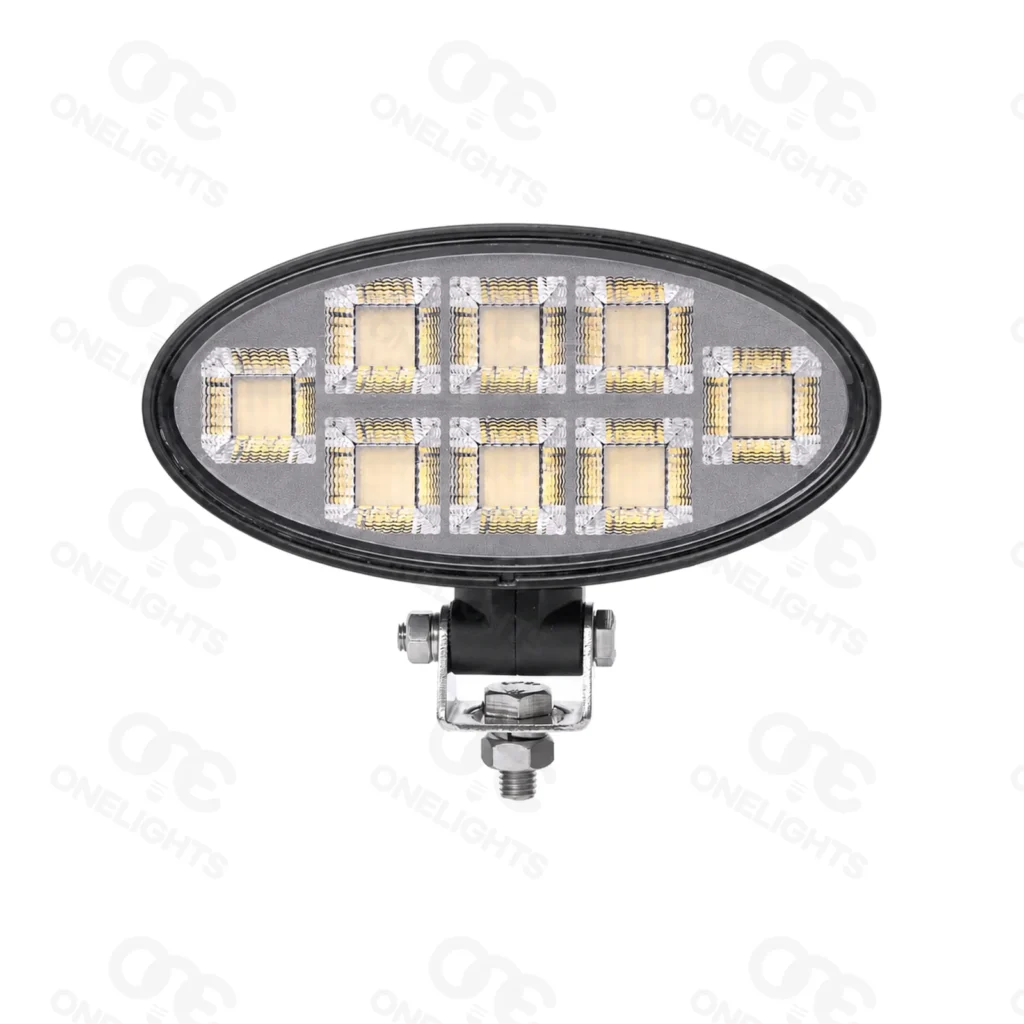

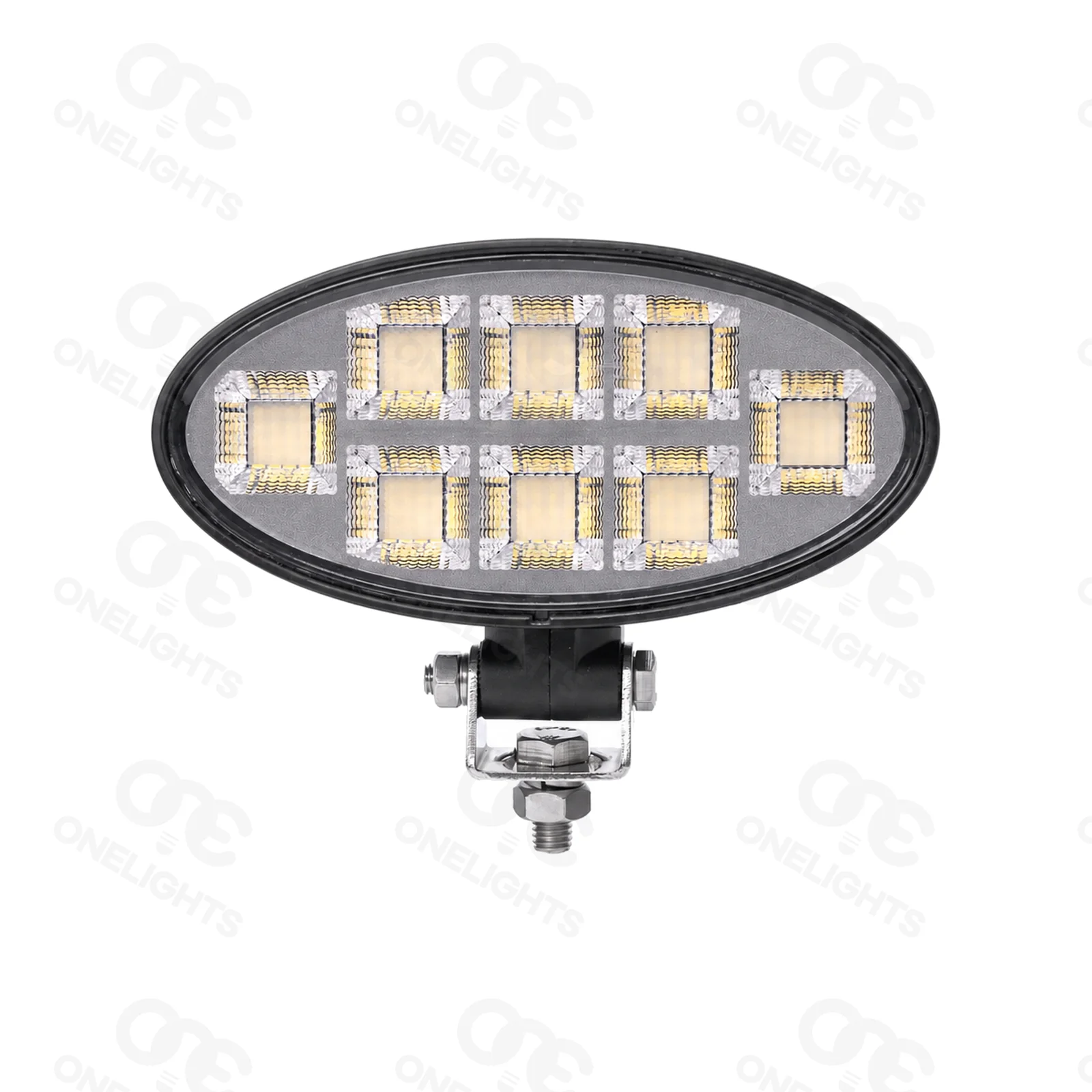

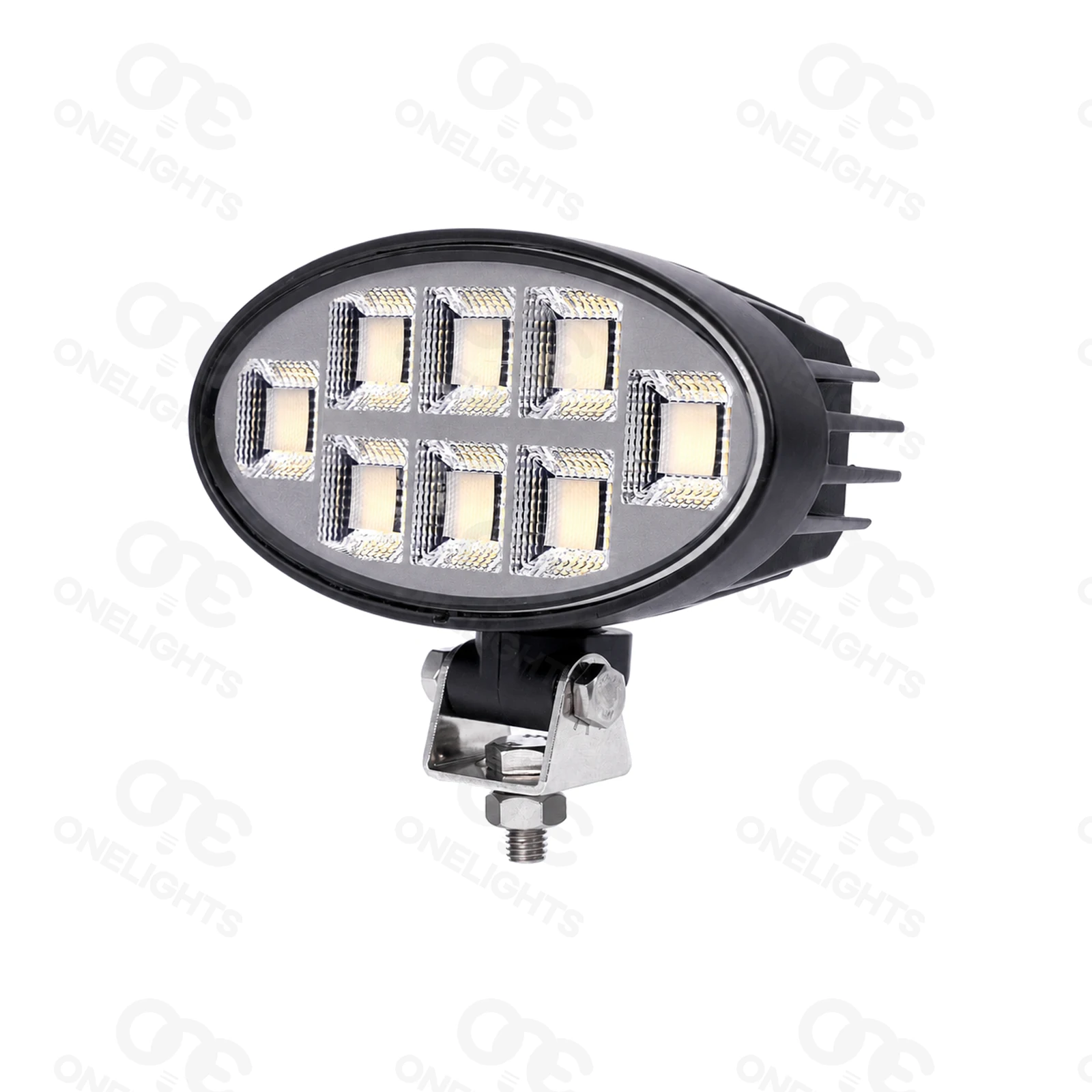

7-inch 160W Elliptical Flood LED Work Light
As the highest-output elliptical model in the A3EO series, this 7-inch work light delivers 13,600 actual lumens from 160W. Its flood beam covers broad work areas, while thermal management and CISPR25 Class 4 compliance support integration into demanding equipment applications.
Key Features
160W Power
13,600 lm Output
Flood Beam

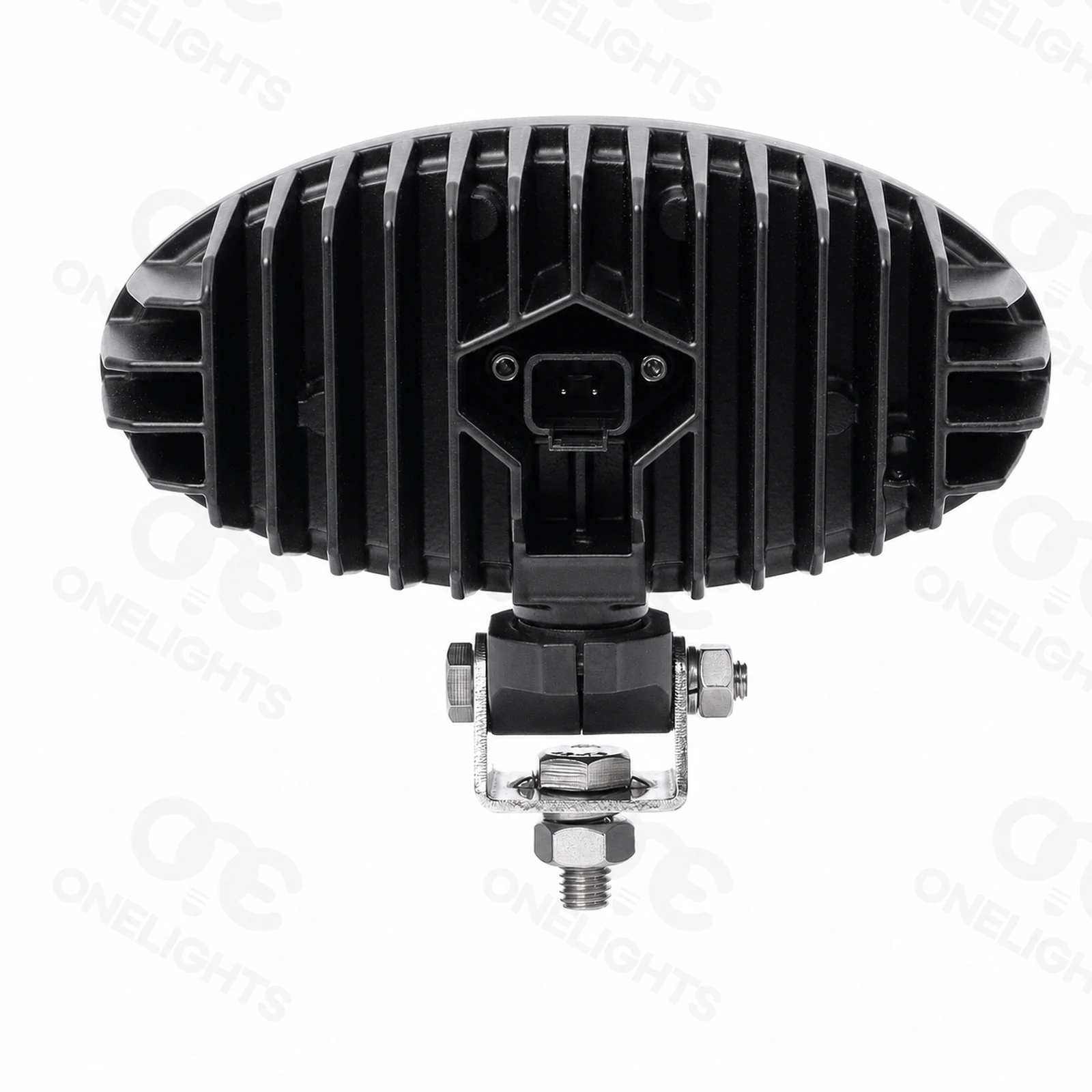

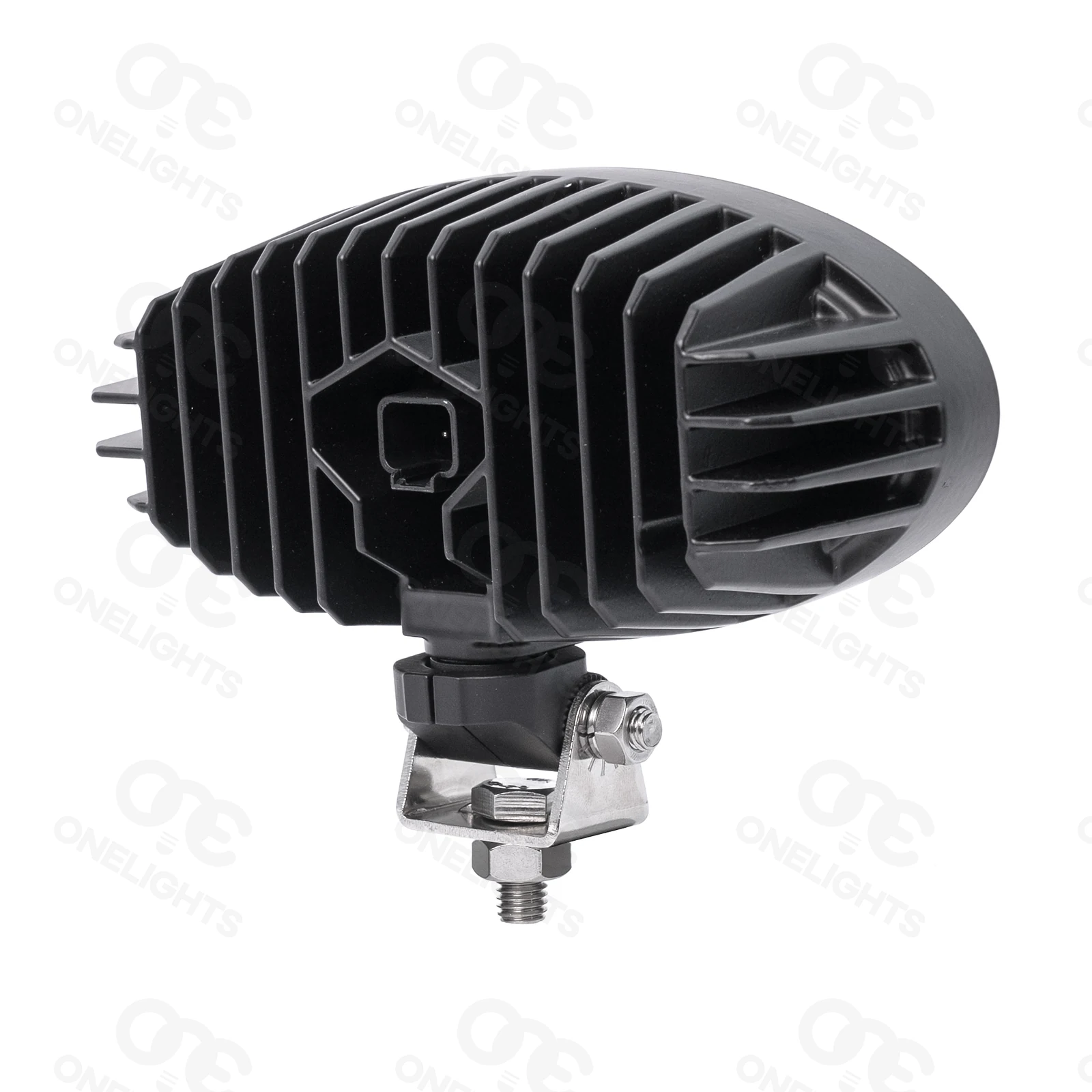

Thermal Management
IP68 Water Protection
Size
7-inch
Power
160W
Operating Voltage
9-32V DC
Actual Lumens
13,600 lm
Beam Pattern
Flood Beam
Color Temperature
6000K
IP Rating
IP68
Housing Material
Die-cast aluminum
Lens Material
PC
Mounting / Bracket
304 Stainless Steel Bracket
Cable / Connector
Bare Wire Leads
Operating Temperature
-40°C to +85°C
Certifications & Compliance
CISPR 25 Class 4
